| Discharge Aids || Air Sweeper |

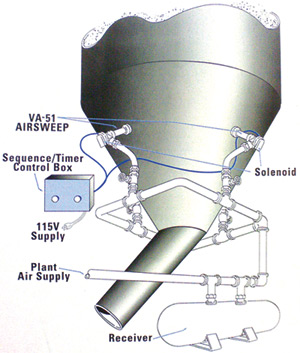

A typical Airsweep system consists of strategically-located Airsweeps, high-flow solenoid valves, electronic sequence controller and air receiver.
The system can operate independently or can easily integrate with other equipment or automation systems. Based upon flow requirements, system is set to sequentially pulse bursts of high-velocity air along the container wall. Up to an 8-foot diameter of material is dislodged with each pulse, promoting steady outflow.
AIRSWEEP'S UNIQUE FEATURES In Compare With Other Systems:
• Starts and moves materials fast
• First in, first out controlled flowow
• Restores full bin capacity
• Safe, non-damaging to vessel
• Low air consumption
• Installed & serviced from outside of container
• 3-year warranty
• Only one moving part
• Non-jamming design
• Sturdy, long-lasting
• Mounts to metal, concrete, fiberglass, etc.
• Operates above 900º F
• Virtually maintenance free
• Activates up to an 8'diameter of material per pulse
provides solutions for tough flow problems in many industries such as :
Cement & Aggregate
Chemical l
Construction
Food
Mining
Plastics
Flour
...
In Compare With :
FLUIDIZERS
• Effective radius is small
• Typically install from interior of vesselel
• Ineffective with wet or sticky materials
• May cause wall abrasion
• High air use
VIBRATORS
• Damage or wear to vessel is likely
• Noisese
• Do not work reliably in all conditions
• Not energy efficient
|
 |
|
